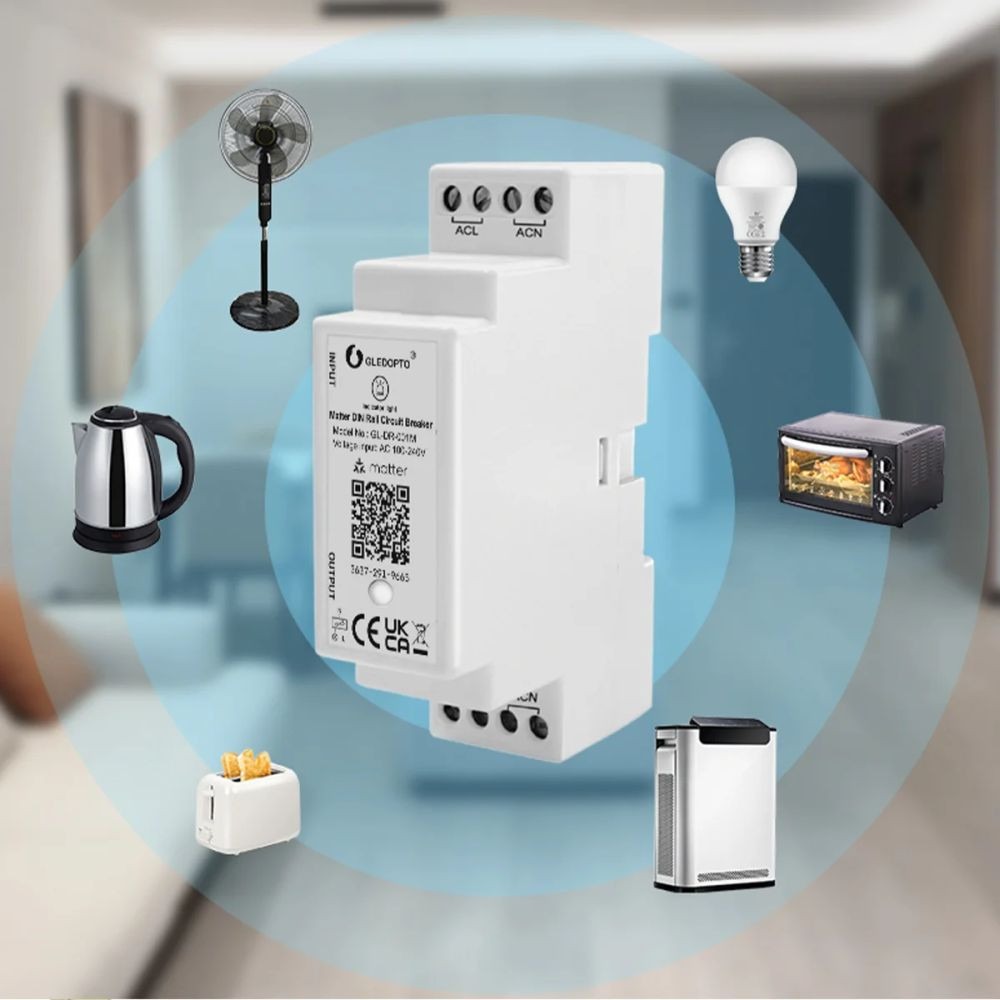

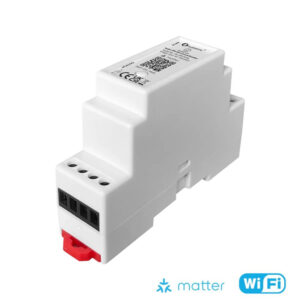

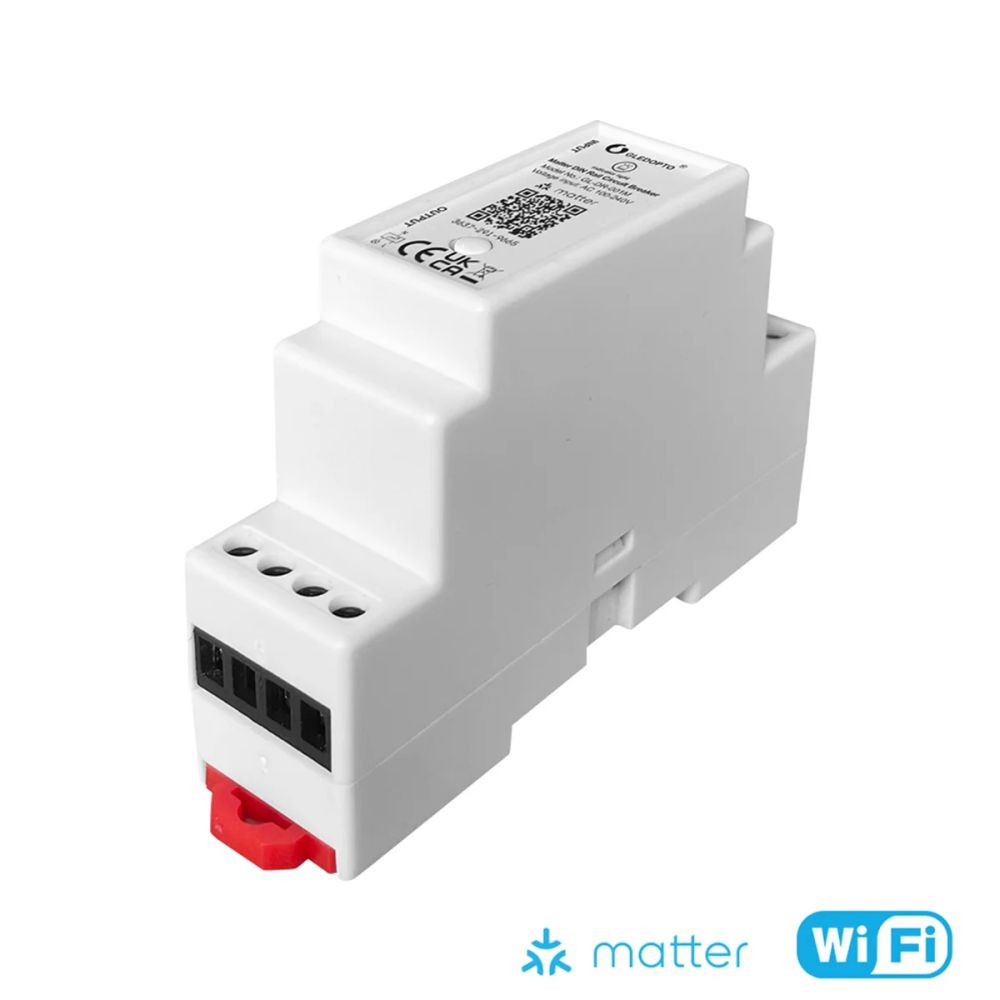

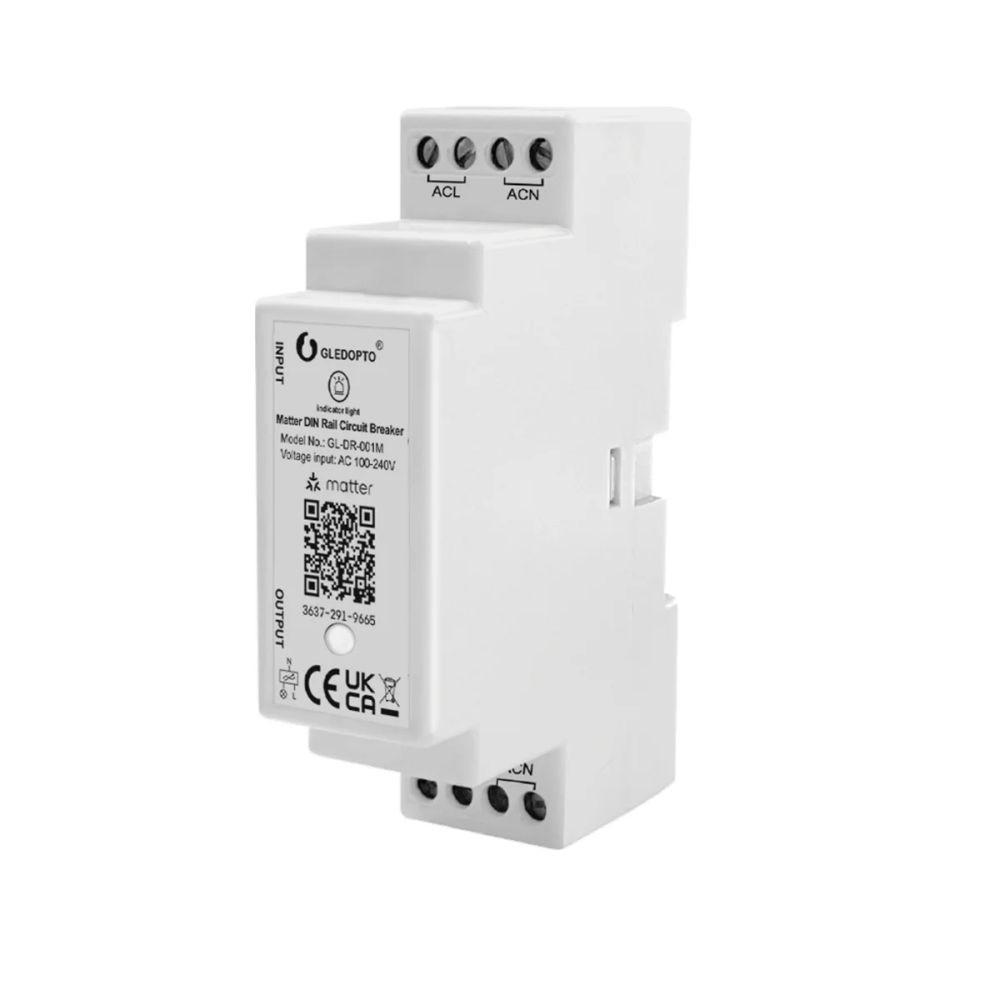

Gledopto Matter DIN Rail Circuit Breaker (GL-DR-001M) is a DIN rail-mounted single-channel smart relay module designed for switching 100–240 V AC electrical loads. The relay is intended for controlling a single circuit with a maximum rated load of 16 A.

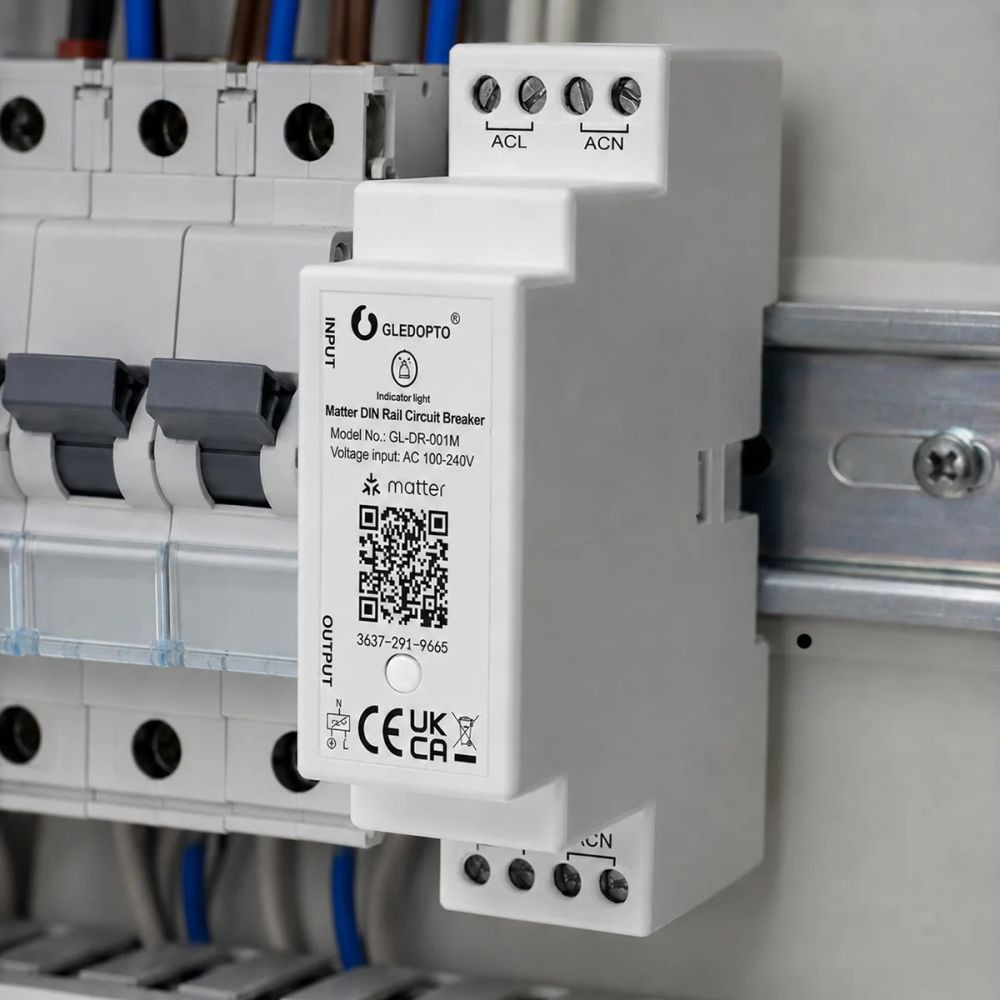

The device communicates using Matter over Wi-Fi, allowing integration into Apple Home, Google Home, Amazon Alexa, Samsung SmartThings, or Home Assistant through a compatible Matter Controller. Its standard DIN rail mounting design enables easy installation inside electrical distribution boards or control cabinets.
Matter commissioning is performed via Bluetooth Low Energy (BLE), after which the relay communicates over a Wi-Fi network. The relay does not provide power monitoring, a dry contact output, or an external switch input. The device can operate entirely on a local network and, when used with a compatible Matter Controller, does not require an internet connection. Overcurrent and short-circuit protection must be provided by a separate circuit breaker or other suitable protective device within the electrical installation.
About Gledopto
Gledopto manufactures LED lighting controllers, relay modules, RF remote controls, and Zigbee, Matter, and WLED-based smart home devices. Its product portfolio includes LED controllers, DIN rail-mounted relays, digital LED controllers, and various lighting automation solutions.
Key Product Features
- DIN rail mounting: Standard DIN rail design for installation in electrical distribution boards.
- Matter over Wi-Fi: Connects to Matter-compatible smart home systems via a Wi-Fi network.
- 16 A relay output: Suitable for switching a single electrical circuit with a maximum rated load of 16 A.
- 100–240 V AC power supply: Operates directly from the mains supply.
- Physical control button: Used for local on/off control, Matter commissioning, and factory reset.
- Status LED: Indicates operating and pairing status.
- Flame-retardant PC enclosure: IP20-rated housing for indoor installations.
Smart Home Protocols and Platform Compatibility
- Matter over Wi-Fi: Control is provided through the Matter protocol over a Wi-Fi network.
- Bluetooth: Bluetooth Low Energy (BLE) is used exclusively for Matter commissioning.
- Apple Home: Compatible when used with a HomePod or Apple TV acting as a Matter Controller.
- Google Home: Compatible with Google Nest Hub or other Google devices supporting Matter Controller functionality.
- Amazon Alexa: Compatible with Matter-enabled Amazon Echo devices.
- Samsung SmartThings: Supported through Matter integration.
- Home Assistant: Compatible through native Matter integration with an appropriately configured Matter Server.
- Cloud mode: Remote access depends on the capabilities of the selected Matter platform.
- Offline / LAN mode: Can operate locally without an internet connection when used with a compatible Matter Controller.
Smart Features
- Remote on/off control from a Matter-compatible smart home platform.
- Relay status monitoring through the selected Matter platform.
- Can be integrated into automations and scenes.
- Voice control through Apple Home, Google Home, Amazon Alexa, or Samsung SmartThings.
- Local switching using the built-in physical button.
- Remote control through the cloud service of the selected Matter platform, where supported.
Electrical Features
- Operating voltage: 100–240 V AC, 50/60 Hz
- Relay output: 1 mains-voltage switching relay output
- Maximum switching current: 16 A
- Output: The output voltage is the same as the supplied mains voltage.
- Power monitoring: No
- External switch input: No

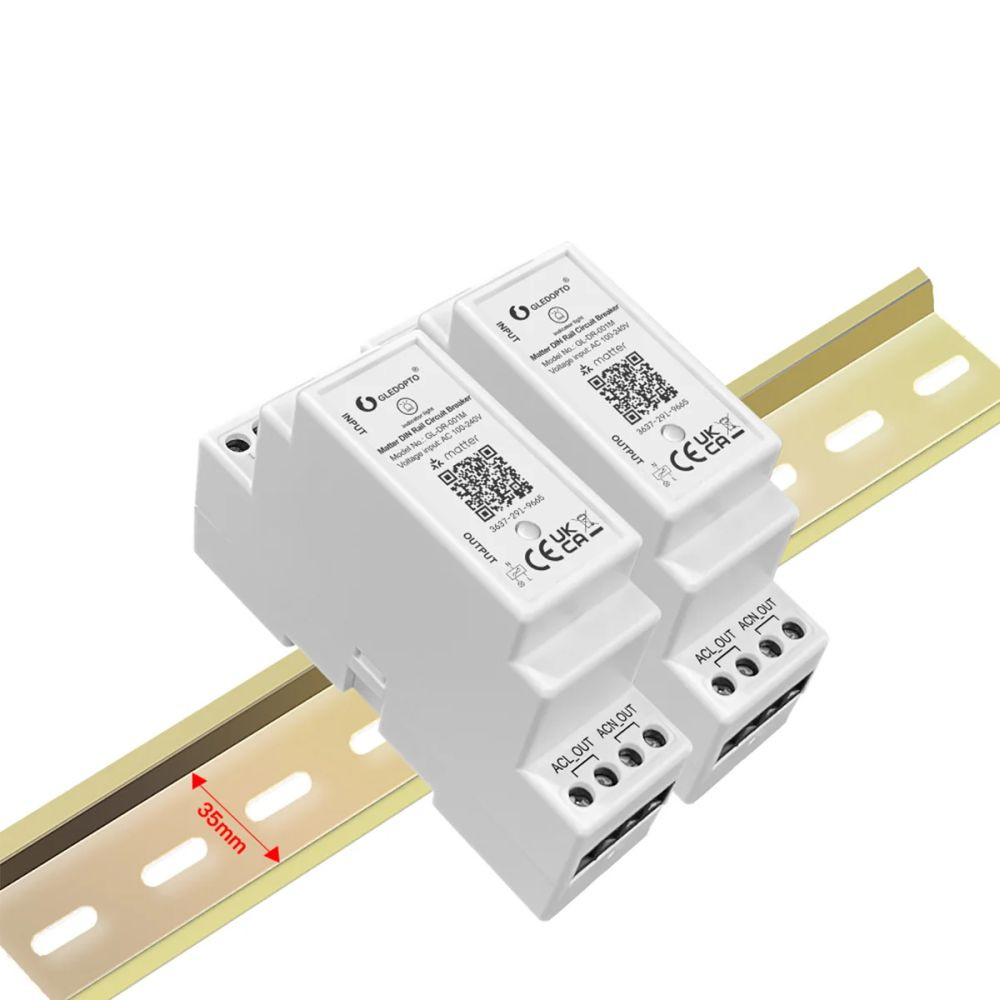

- DIN rail mounting: Yes, standard DIN rail mounting design
Technical Specifications
- Model: GL-DR-001M
- Product type: Matter DIN rail-mounted relay module
- Power supply: 100–240 V AC
- Communication: Matter over Wi-Fi
- Commissioning: Bluetooth Low Energy (BLE)
- Number of outputs: 1 relay output
- Maximum switching current: 16 A
- Power monitoring: No
- Dry contact output: No
- External switch input: No
- DIN rail mounting: Yes
- Physical control button: Yes
- Status LED: Yes
- Enclosure: Flame-retardant PC plastic
- Protection rating: IP20
- Dimensions: 24 × 59 × 92 mm
- Installation environment: Indoor
