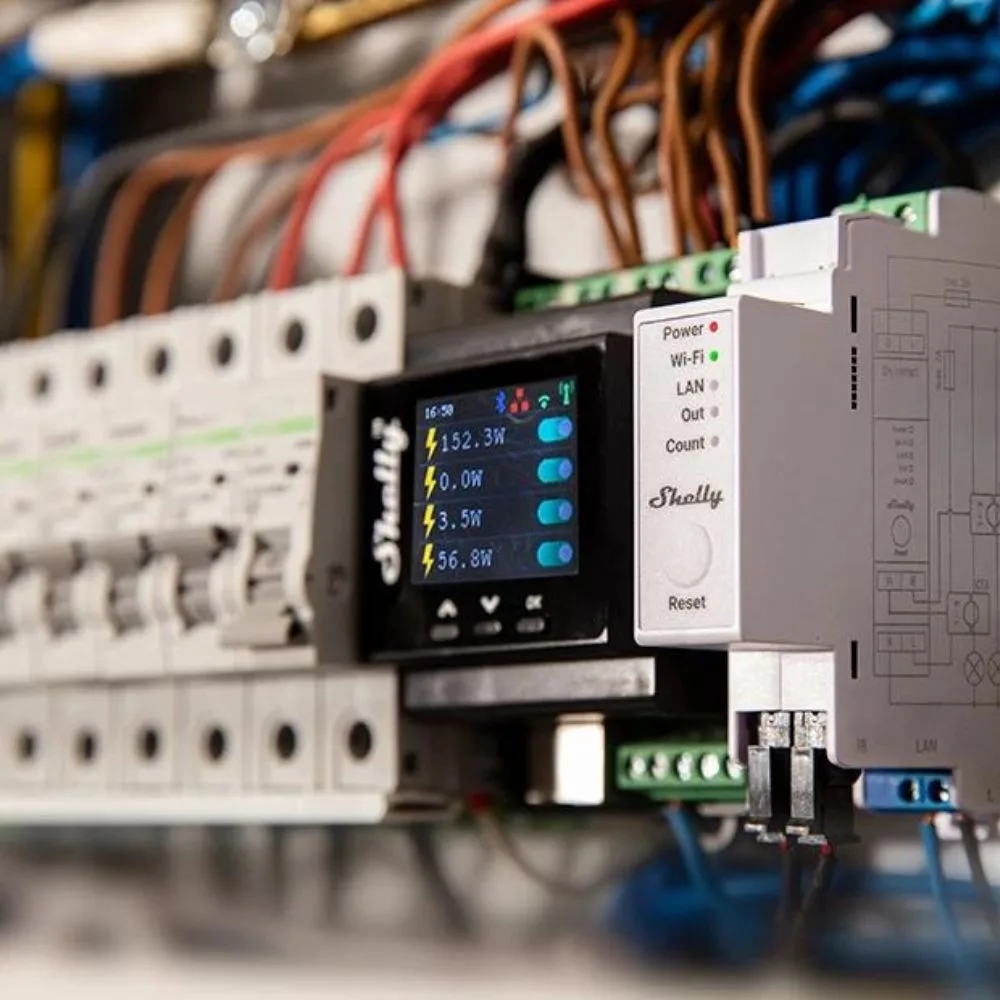

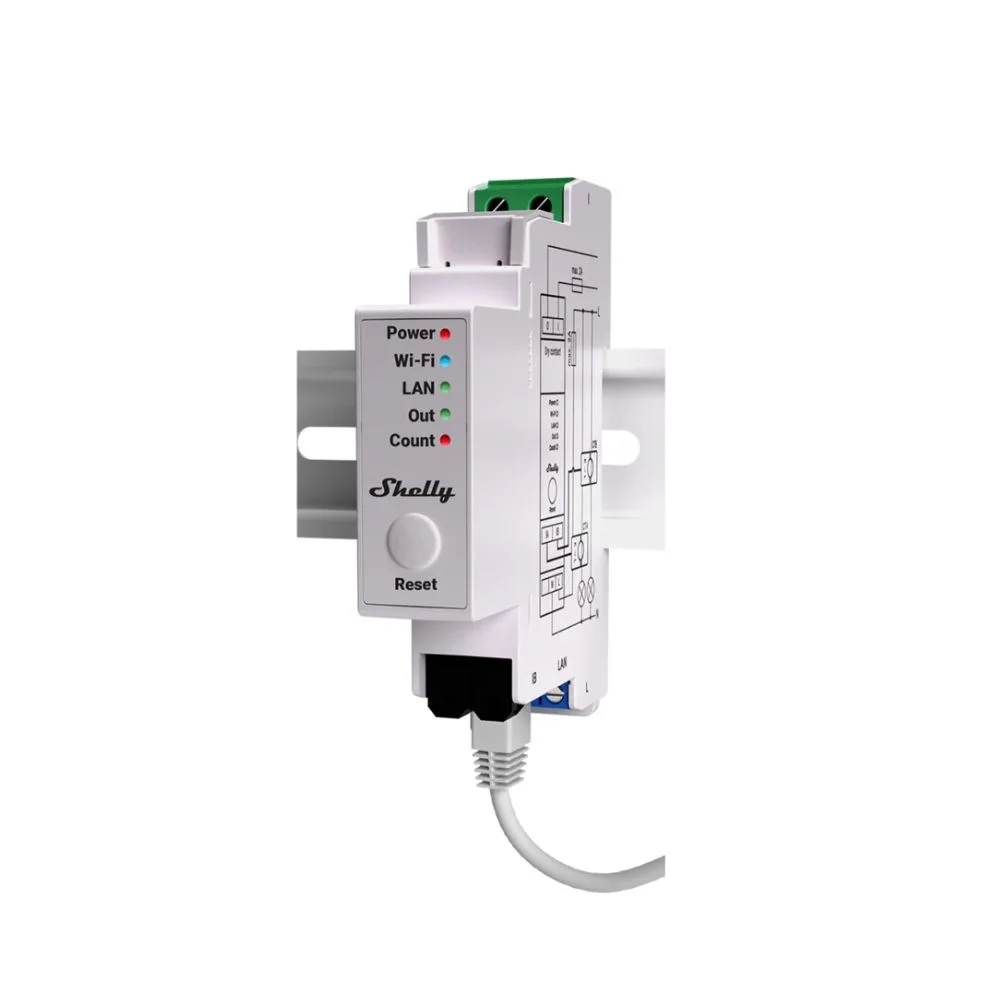

Shelly Pro EM 50A is a Wi-Fi-operated DIN-mountable 1-Phase Energy Meter with Wi-Fi, Bluetooth, and LAN connectivity. With active energy measurement accuracy of 1%, Shelly Pro EM 50A can be used to monitor the consumption of any home appliances, electric circuits, and office equipment individually. It features 60 days of on-device historical data with a 1-minute resolution for each phase. Additionally, its scripting functionalities allow for the execution of complex scenes and provide broader monitoring abilities.
Enhanced with all the gen2 firmware flexibility of Shelly products and LAN connectivity, it provides professional integrators with additional options for end-customer solutions. Shelly Pro EM-50 reports accumulated energy as well as instantaneous voltage, current, and power factor per phase in real-time.
Features:
- 4 quadrant measurement with multiple connection types: Measure capacitive and inductive load types of active imported and exported energies.
- Accuracy Class B (IEC 62053-21) active energy: Shelly Pro 3EM has a measurement accuracy of 1%.
- Photovoltaic ready
- Phase sequence error detection* (option)
- Optical pulse indication of energy usage

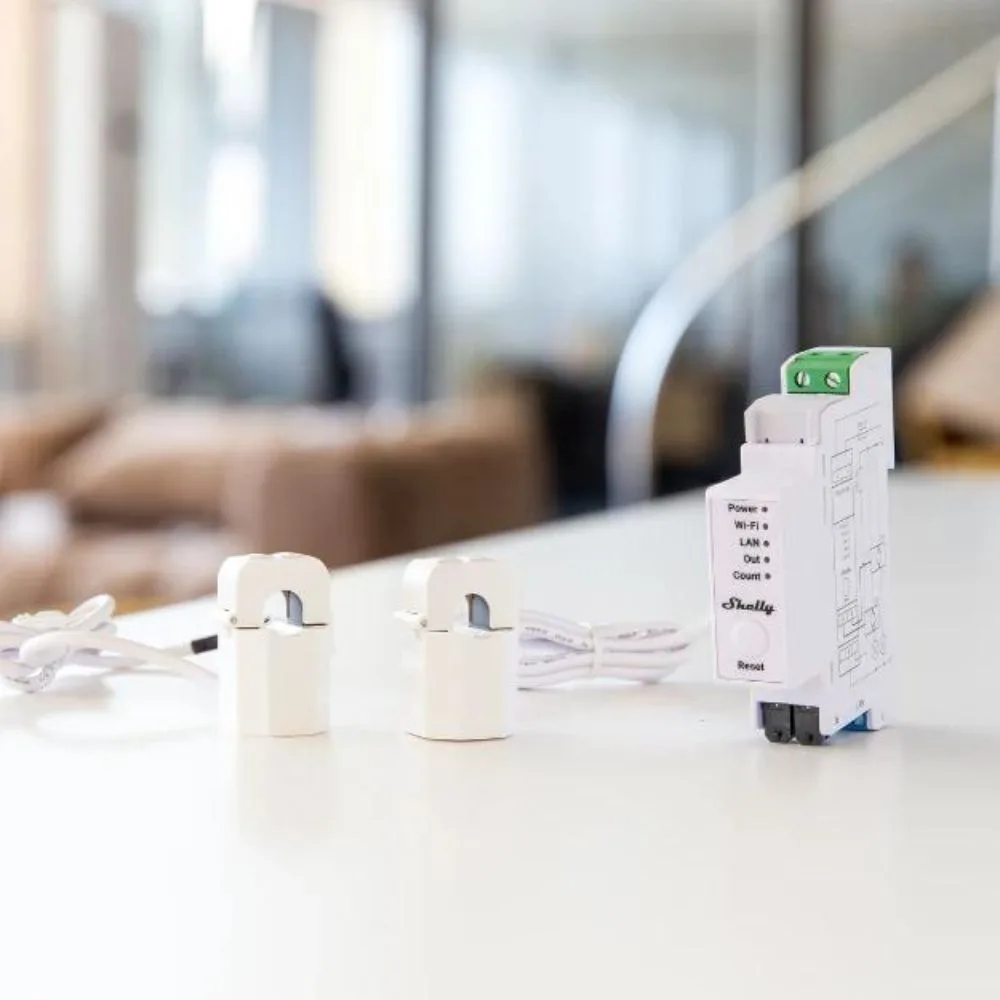

- Package includes 2 pieces of 50A Current Transformers
- MODBUS support: Allows for easy and fast deployment in existing industrial installations.
- Wi-Fi, LAN, and Bluetooth connectivity: Simultaneous Ethernet and Wi-Fi usage. MQTT, inbound and outbound WebSocket, UDP, mTLS support.
- Power monitoring: Monitors mono-phase electrical systems with up to 3 points simultaneously. Fast notifications and at least 60 days of 1-minute records storage. Stores data in non-volatile memory.
- Scripting functionalities: Shelly Pro EM-50 fully supports mjS scripting, allowing you to create further features and functionalities.
- Industry-grade security Shelly Pro EM-50 supports mTLS for MQTT, HTTP, and secure outbound WebSockets. Its industry-grade security allows for direct connections to your cloud infrastructure, reducing the cost of deploying complex networks and VPNs.
Shelly PRO 3EM – USE CASES
Industrial installations
Shelly Pro EM-50 brings support for MODBUS for voltage, current, power, and energies. You can accurately sample your energy usage and instantaneous values of voltage, current, and power. Our new firmware platform allows for custom implementation that can report as fast as every 100ms to your infrastructure.
2-way energy consumption monitoring
Monitor your home, office, or factory, and avoid additional expenses or drops in voltage that can damage your appliances and devices. Shelly Pro EM-50 can calculate 2-way consumption: produced and used energy for each of the three phases. The device can be configured to measure three separate circuits of a mono-phase electrical system. View the quality of your electricity network regarding active power, reactive power, voltage, and power factor.
Local control
Thanks to Shelly Pro EM-50’s scripting functionalities and webhooks, you can now easily control other Shelly or Wi-Fi devices on your local network. Use these capabilities to set exact parameters for heating, cooling, or electric vehicle charging based on PV production and have your devices automatically shed power usage. All these work without using a cloud.
Solar panels monitoring and control
Keep track of how much energy your solar panels or wind turbines are generating and save effortlessly. Shelly Pro EM-50 provides real-time information about the efficiency of the solar and wind energy system, as well as historical data on how much energy has been generated and consumed every minute for the past 60 days. This helps you control the energy flow, getting the most out of your solar panels and wind turbines. To take it a step further, connect Shelly Pro EM-50 to your other Shelly devices and create scenes to trigger desired actions like turning off appliances or sounding alarms.
