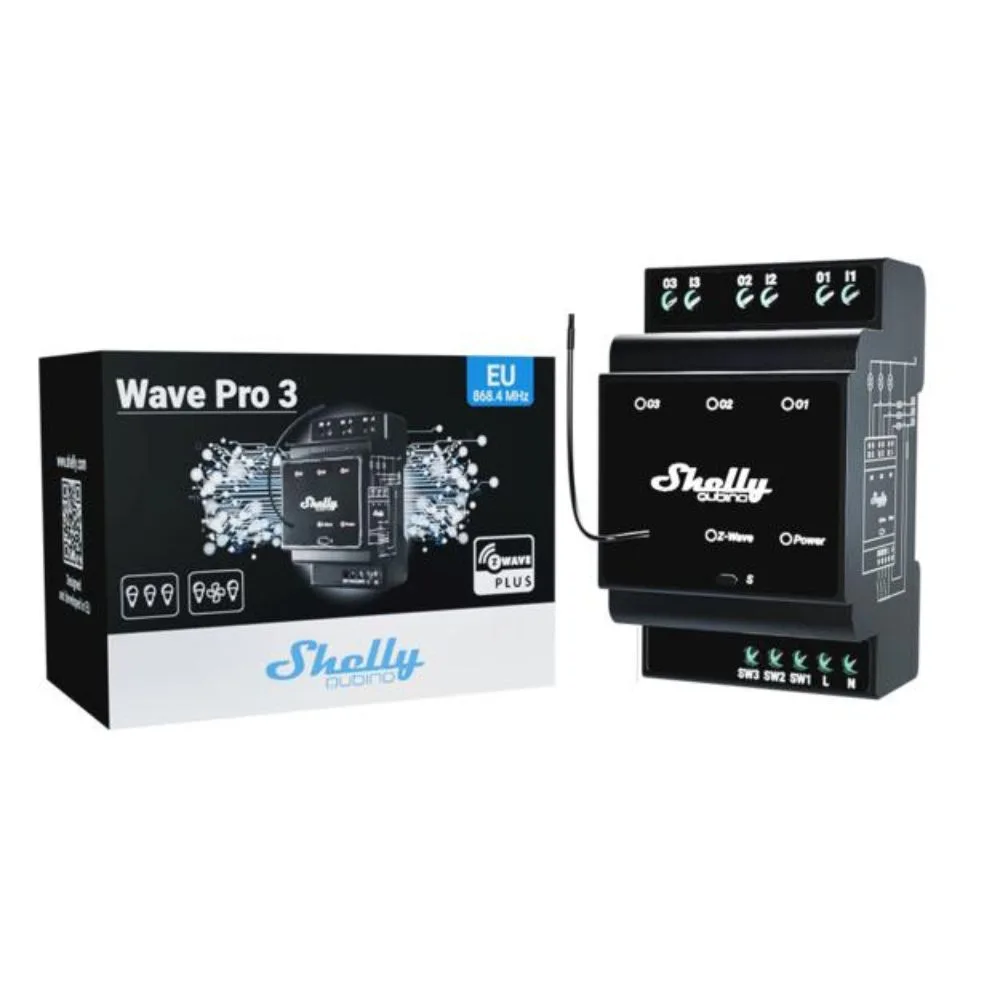

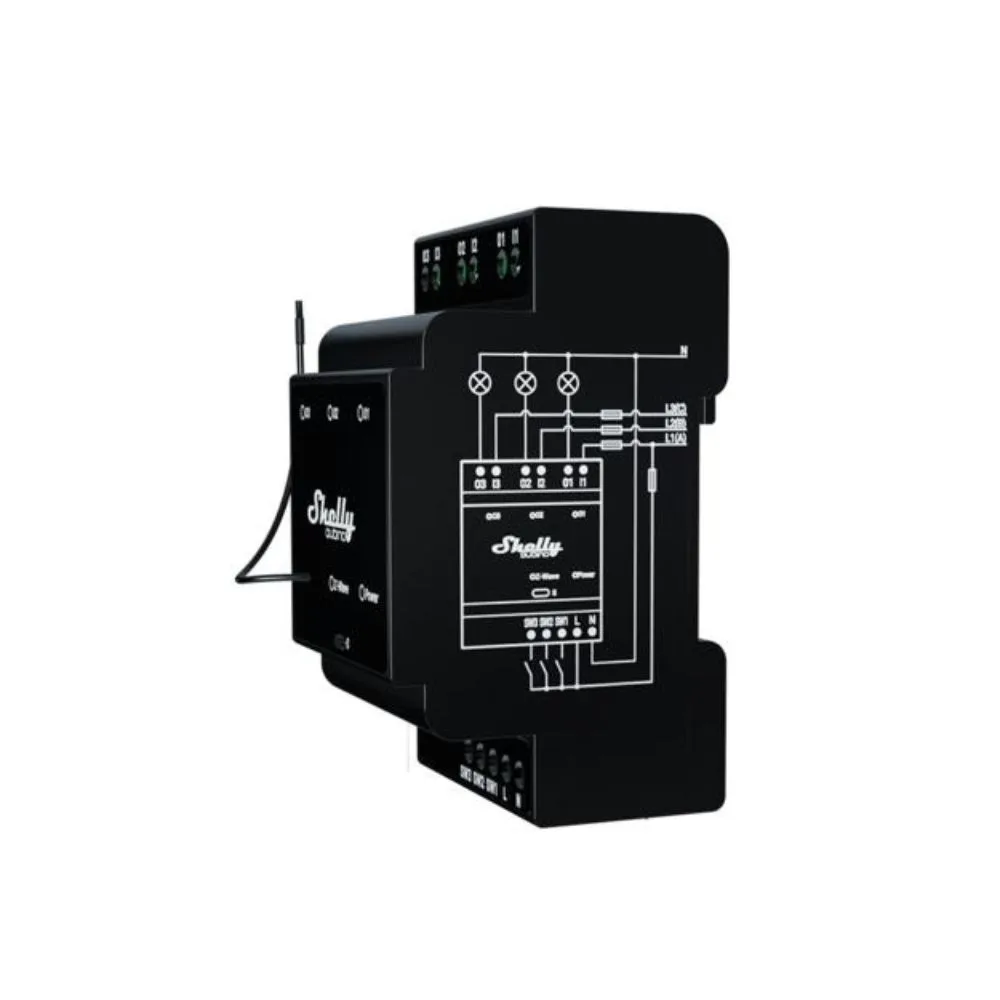

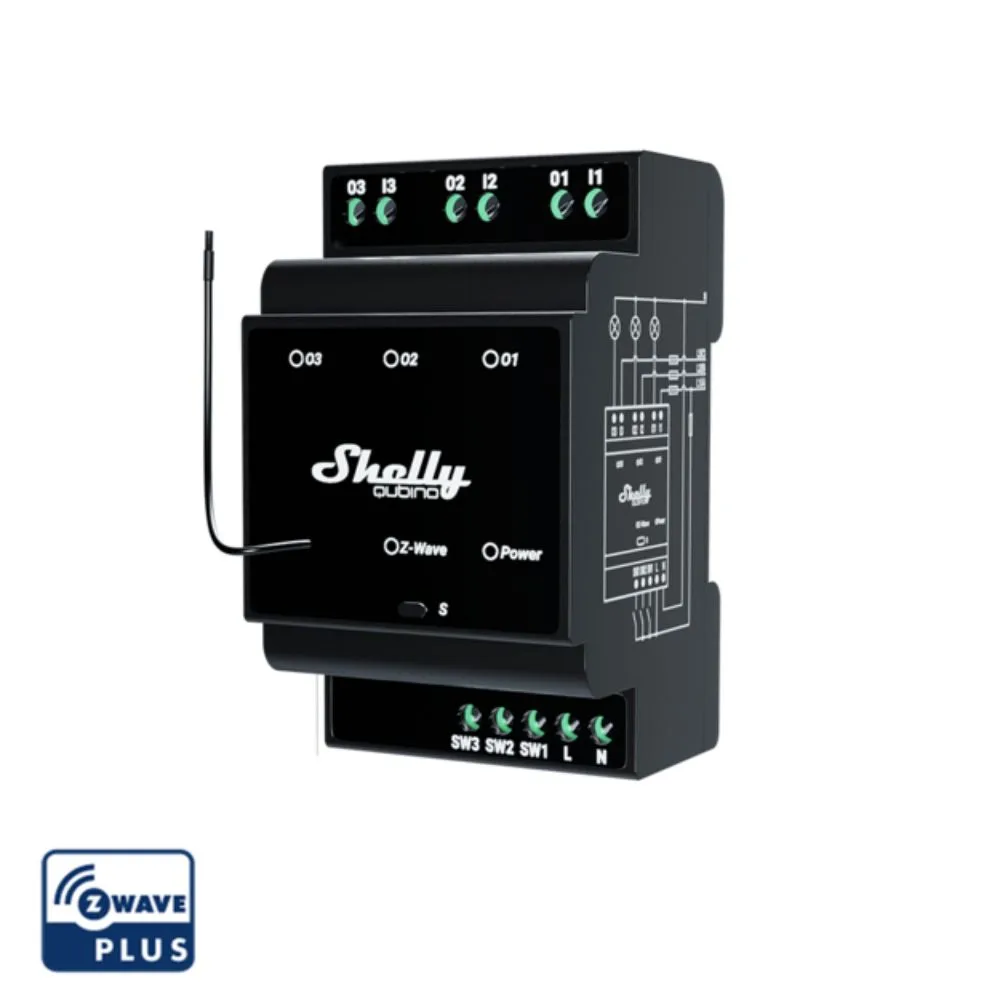

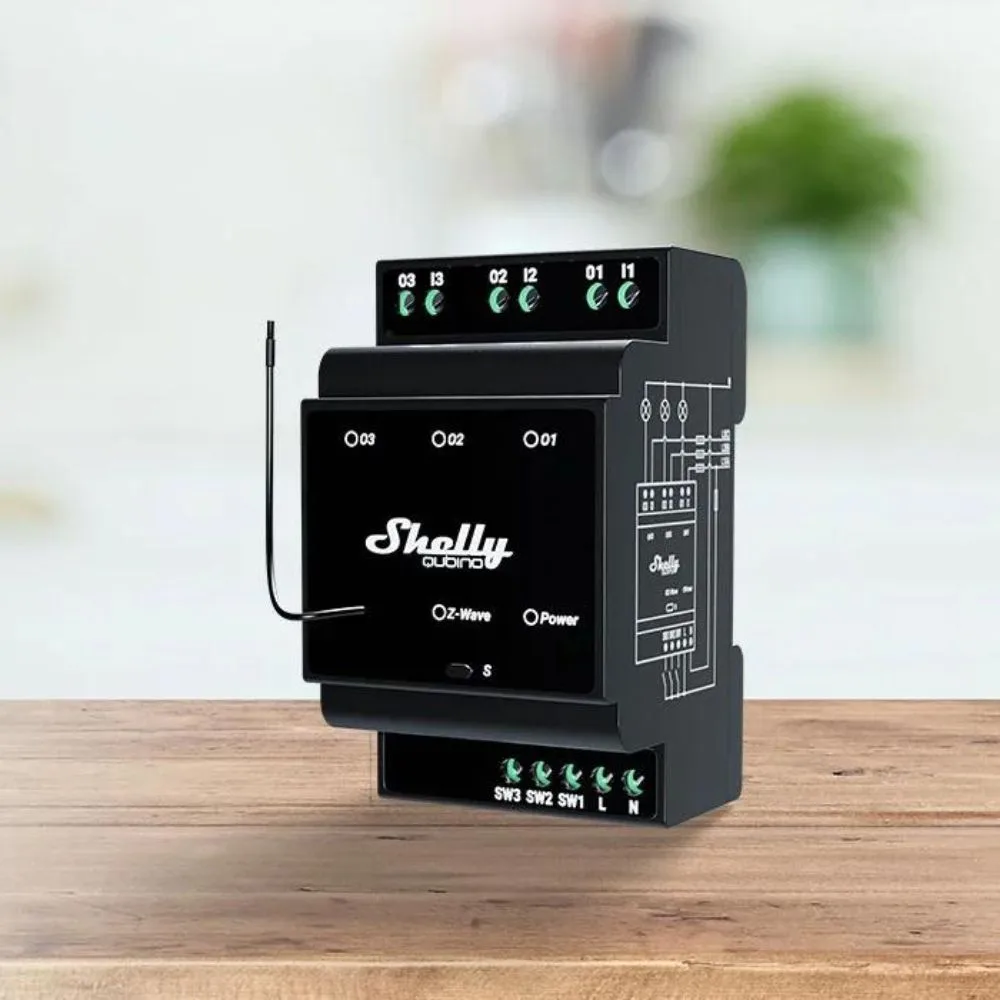

The Shelly Qubino Wave Pro 3 is a professional 3-channel DIN-rail mountable Z-Wave® smart switch with dry contacts. It is ideal for home and facility automation with remote control capabilities and advanced safety features.
Product features:
- 3 outputs, 16 A each, total 48 A
- DIN-rail mountable
- Dry contacts
- Low power consumption: < 0.3 W
- Z-Wave 800 series, 868.4 MHz
- Automatic setup with SmartStart
- High-level security: Security 2 Authenticated
- Remote control via smartphone or tablet
- Compatible with over 4000 Z-Wave devices and gateways
Why Choose Wave Pro 3?
Perfect for new residential and business buildings, Wave Pro 3 supports up to 48 A for professional automation. It offers high flexibility with potential-free outputs (dry contacts), and allows various actions, scenarios, and schedules tailored to daily activities or business needs.
Integration and Compatibility:
Shelly Qubino devices are compatible with any Z-Wave gateway and over 4000 Z-Wave certified devices. A gateway (smart hub) is required for configuration and is not included.
Specifications:
- Power Supply: 110 – 240 V AC, 50/60 Hz
- Consumption: < 0.3W
- Max Switching Voltage AC: 240 V
- Max Switching Current AC: 16 A per channel, total 48 A
- Max Switching Voltage DC: 30 V
- Max Switching Current DC: 16 A per channel, total 48 A
- Dimensions (H x W x D): 96x53x59 mm
- Weight: 150 g
- Mounting: DIN rail
Use Cases:
- Dynamic Lighting Control: Automate office lighting for improved efficiency and energy savings.
- Optimal Indoor Climate: Manage heating and cooling systems in hotels and commercial buildings.
- Socket Automation: Efficiently control power delivery to reduce energy consumption.
