This is a 2021 new Zigbee + RF version of the popular 1-gang smart relay-switch from Sonoff-compatible SmartWise brand, ideal solution for remote control of motorized gates, garage doors, irrigation systems, or other electric devices/circuits. This smart device combines Zigbee with RF connection capabilities,so it can be connected to a Zigbee-based smart home system, as well as, remote controlled locally from a 433MHz RF remote contoller.
The Zigbee part is both compatible with Sonoff Zigbee Bridge (and the eWeLink smartphone app and platform) and Tuya / SmartLife Zigbee gateways.
Through the RF receiver it can be wirelessly controlled by Sonoff RF remote controllers and SmartWise RF wall switches, too.
The smart relay needs a 5V USB or 7V-32V AC/DC power supply. The controlled circuits operate independently from the relay’s power supply, the relay supports 90-250V/10A AC connected to COM input or manages 0-30V/10A DC, in either NO or NC connection mode. The smart device manages voltage-free dry-contact switching too.
The smart relay is remotely controllable via Internet and iOS (Apple) or Android smartphone App, and you can set scheduled turning ON / OFF. Share remote control in the App with your family.
Supports momentary switch mode, in which closes or opens after 1 sec. Ideal solution for remote control of electric gates or a PC power adapter.
Product features:
- Remote ON / OFF – Anytime, anywhere, from now on you can turn all your appliances on and off remotely.
- Relay power supply: 5V DC USB or 7V-32V AC/DC
- No of circuits controlled: 1, voltage-free dry contact or 90-250V/10A AC or 0-30V/10A DC
- Mobile App – supports both eWeLink and Tuya / SmartLife platforms, in case of connecting to Sonoff Zigbee Bridge: free iOS and Android mobile App: eWeLink
- RF remote – compatible with 433 MHz Sonoff and SmartWise RF remote controllers and RF wall switches (rolling/jump code remotes not supported)
- Sync status – Check actual relay status (turned ON or OFF) with the mobile App
- Timer – Various timer functions: single time, scheduled turn on/off, countdown/timer, loop.
- Share control – Control the device together with your family
- Group control – Turn ON / OFF numerous devices with one tap
- Smart scene – Triggered ON/OFF by temp, hum or other environmental sensors, or trigger from other compatible smart devices
- Compatibility – Works perfectly with Amazon Alexa, Google Assistant, IFTTT and Google Nest

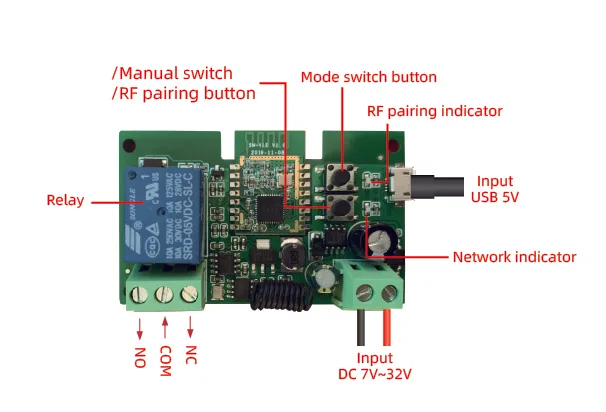

The relay supports two operation modes: normal (self-toggle) switch mode, momentary switch mode. Choose between any with the button on the main panel.
Supports two types of connection: with COM+NO type the relay closes the circuit when switched, with COM+NC type the relay breaks the circuit when switched.
