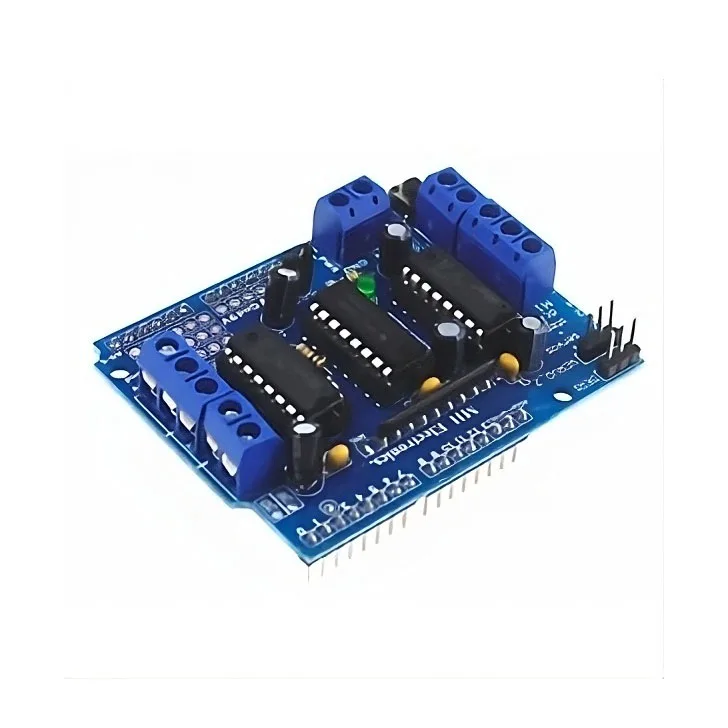

The L293D is an integrated, high-voltage, high-current, 4-channel driver that empowers you to control DC motors and power sources of up to 36 Volts, making it suitable for a wide range of motor sizes. With a maximum current output of 600mA per channel, this chip functions as an H-Bridge, allowing the application of voltage across a load in either direction, such as a motor.
Key Features:
- Supports up to 4 bi-directional DC motors with individual 8-bit speed control
- Capable of driving 4 DC motors, 2 stepper motors, or 2 servo motors
- Accommodates 2 stepper motors (unipolar or bipolar) with various stepping modes
- Each H-Bridge provides 0.6A (1.2A peak current) with thermal protection, compatible with 4.5V to 36V DC motors
- Equipped with pull-down resistors to disable motors during power-up
- Features a reset button for convenience
- Includes 2 external terminal power interfaces for separate logic and motor supplies
The L293D offers a reliable solution for motor control applications, ensuring smooth operation and flexibility in managing different motor types and configurations. Experience enhanced motor control capabilities with this versatile and efficient integrated driver.
